Small Contributions, Sustainable Impacts

Introduction

This past month, I had the chance to contribute to the Open Energy Dashboard (OED) alongside two teammates. Our task was to create a specific test case to improve the platform's reliability, but navigating a large and established codebase came with its own set of challenges. In the end, our test case not only added value to the project but also strengthened our skills in open-source collaboration. In this post, I'll walk through the challenges, insights, and growth we experienced along the way.

About Open Energy Dashboard

The Open Energy Dashboard (OED) is an open-source project dedicated to providing a high-quality, free dashboard that supports sustainability efforts and addresses climate change. The dashboard is designed to help organizations and individuals monitor and analyze energy usage effectively.

OED embodies the spirit of humanitarian open source for the greater good. Instead of creating a proprietary solution for a single organization, OED aims to be a versatile tool accessible to a wide range of users. It fills a gap left by existing dashboards that are often limited in functionality, non-portable, or come with a price tag.

Typical users of OED include sustainability coordinators, energy managers, and environmental researchers who need to track and analyze energy consumption data. For example, a university campus could use OED to monitor energy usage across different buildings, identify inefficiencies, and implement strategies to reduce their carbon footprint.

Initial view of the dashboard

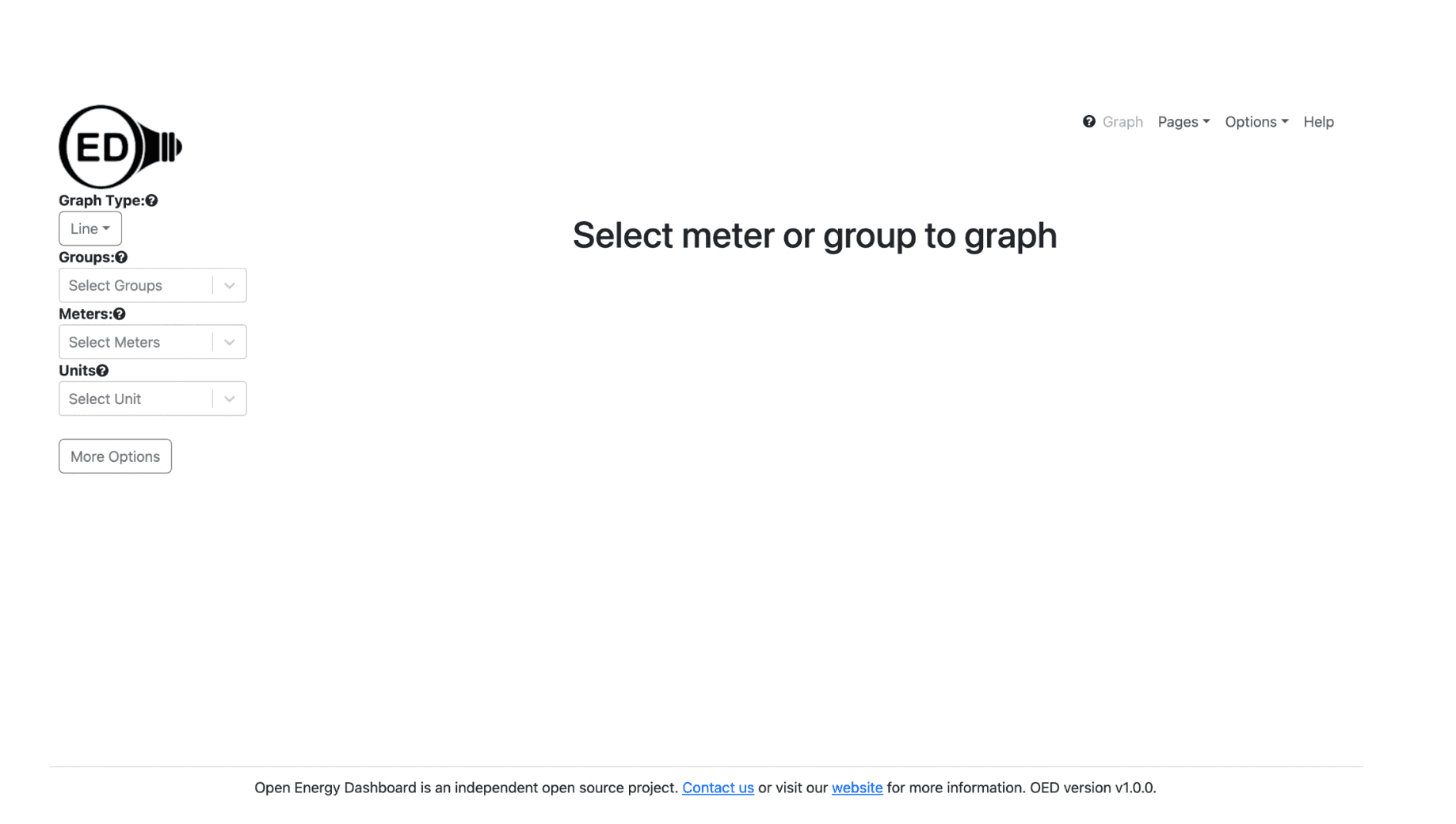

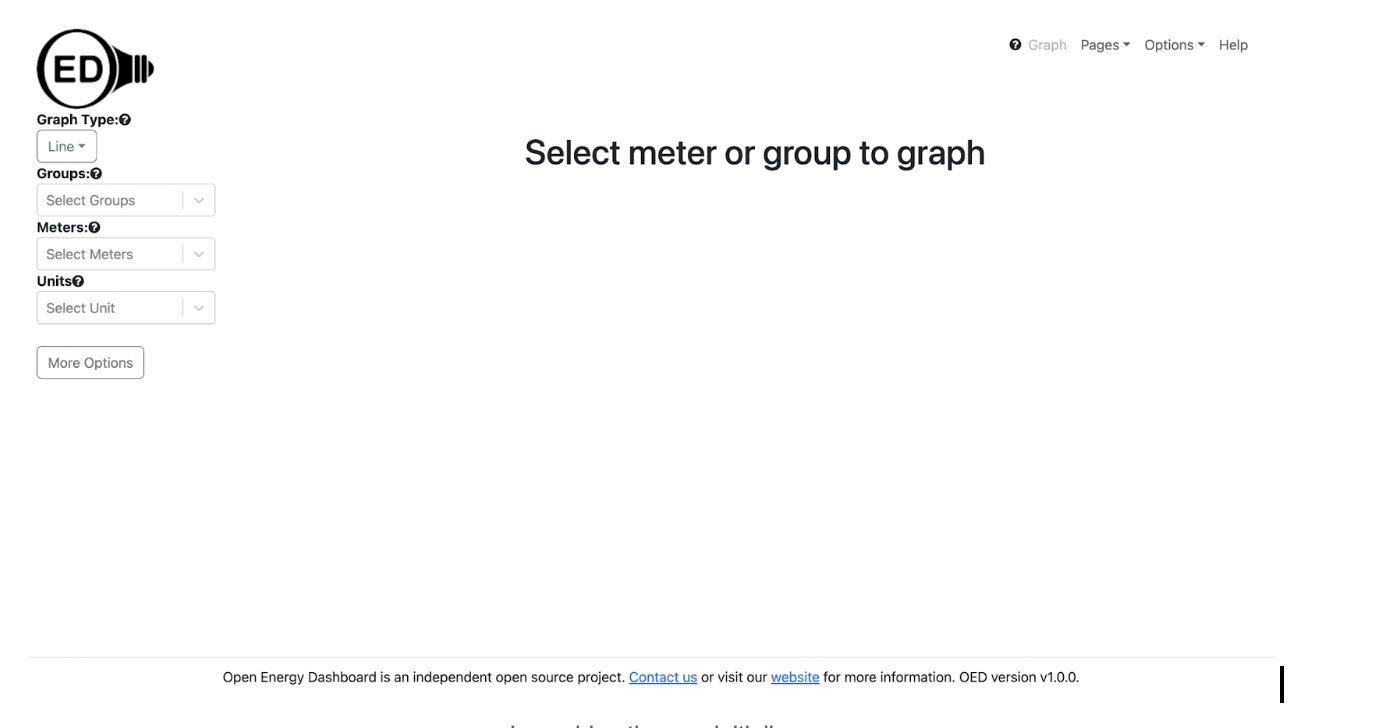

Initial view of the dashboard.
bar graph

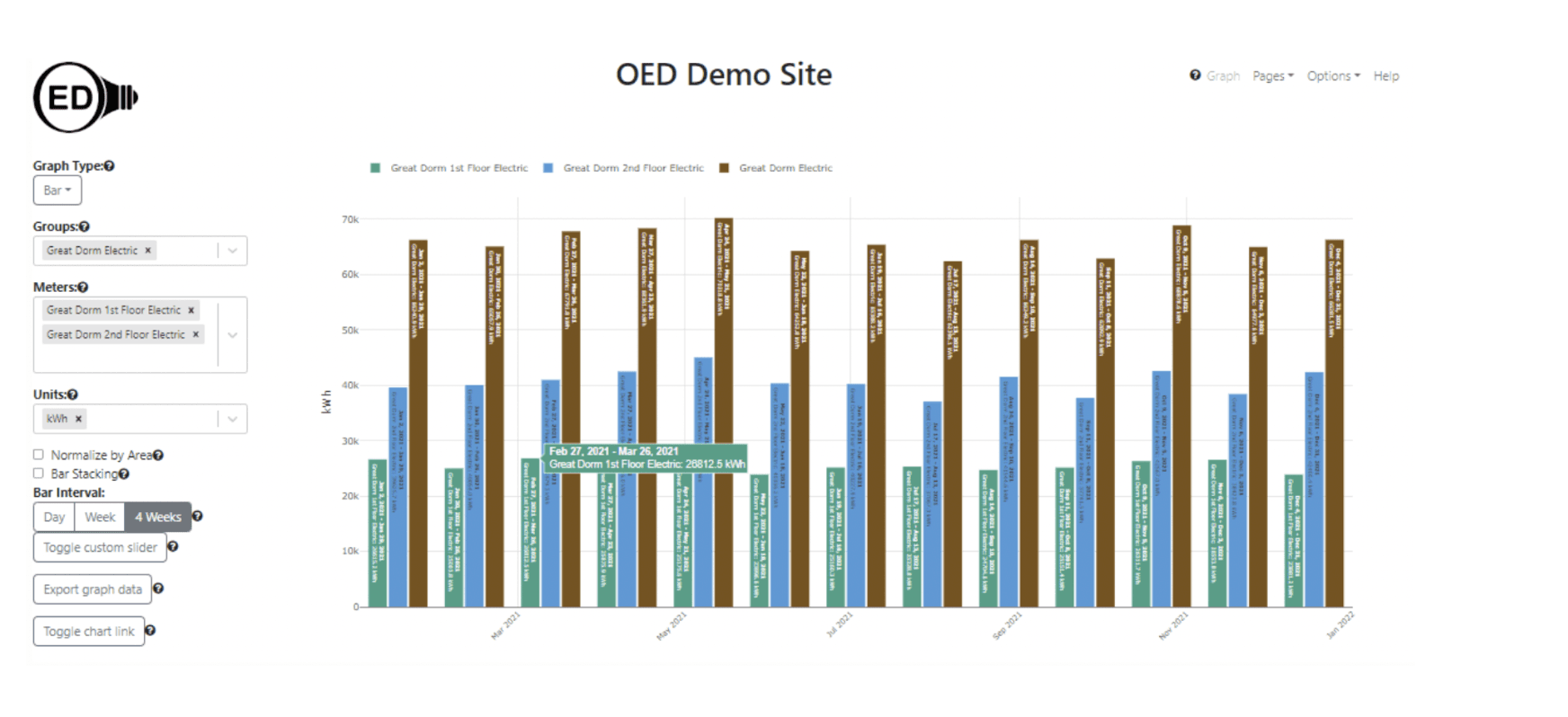

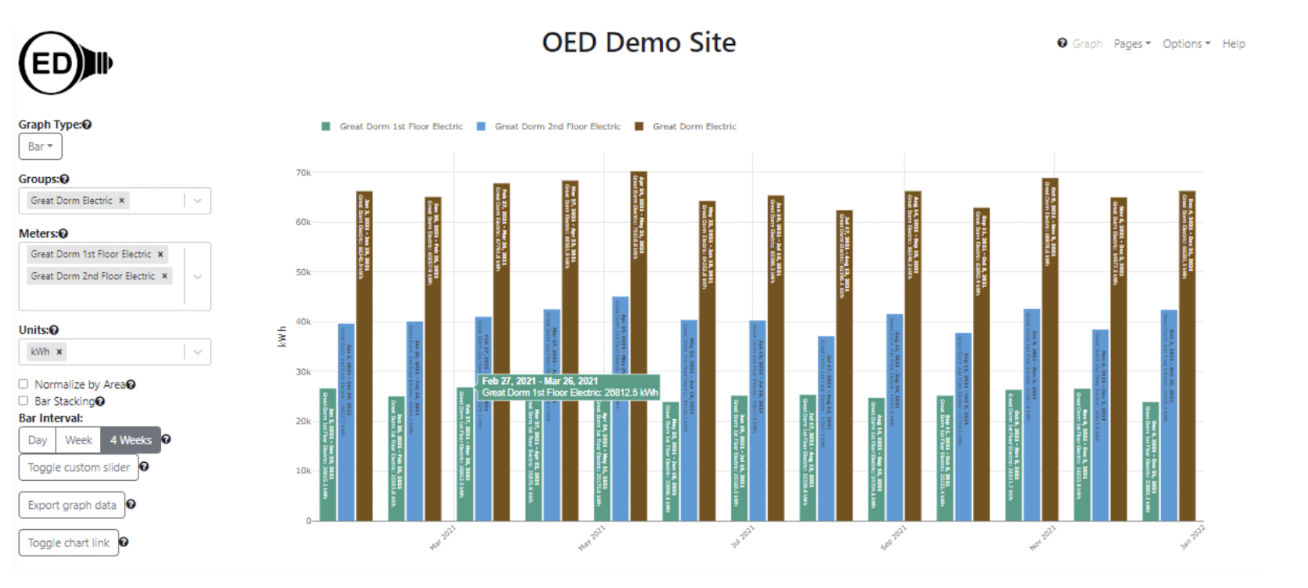

Bar graph displaying energy consumption for dorm floors in kWh

The Issue

I worked on Issue #962 in the Open Energy Dashboard repository, specifically implementing the 'BG9' test case. The issue involved creating new tests for the readings module, specifically focusing on bar group quantity tests. Testing is crucial for ensuring the reliability and accuracy of the Open Energy Dashboard. By adding comprehensive tests, we can guarantee that new features work as intended and that existing functionalities remain unaffected by future changes.

To begin, I studied the design documentation. The testing documentation provided valuable information on how test data is generated, structured, and validated within the system. It detailed the necessary steps for defining units, conversions, and meter data, and explained how to use expected values from CSV files to verify test outcomes. This comprehensive overview helped me understand the testing requirements and procedures, leading me to the specific files where the tests needed to be implemented.

Following the directions from the design documentation, I located readingsBarGroupQuantity.ts, the primary file responsible for tests related to the readings bar group quantity functionality. This file was the ideal place to implement the new BG9 test case, allowing me to cover scenarios involving mixed reading intervals and unit conversions.

Codebase Overview

  • Client (React): The user interface, where users interact with the dashboard to view and analyze energy data.
  • Server (Node.js with Express, using TypeScript): Manages API requests, handles data processing, and communicates with the database.
  • Database(PostgreSQL): Stores historical and real-time energy data, as well as user settings and configurations.
  • Visualization (Plotly.js): Handles the dynamic creation of charts and graphs based on user-selected parameters.
  • Testing (Mocha and Chai) Provides automated testing to verify the accuracy of implemented features.
  • Docker Containers: Encapsulate the application components for consistent deployment across various environments.

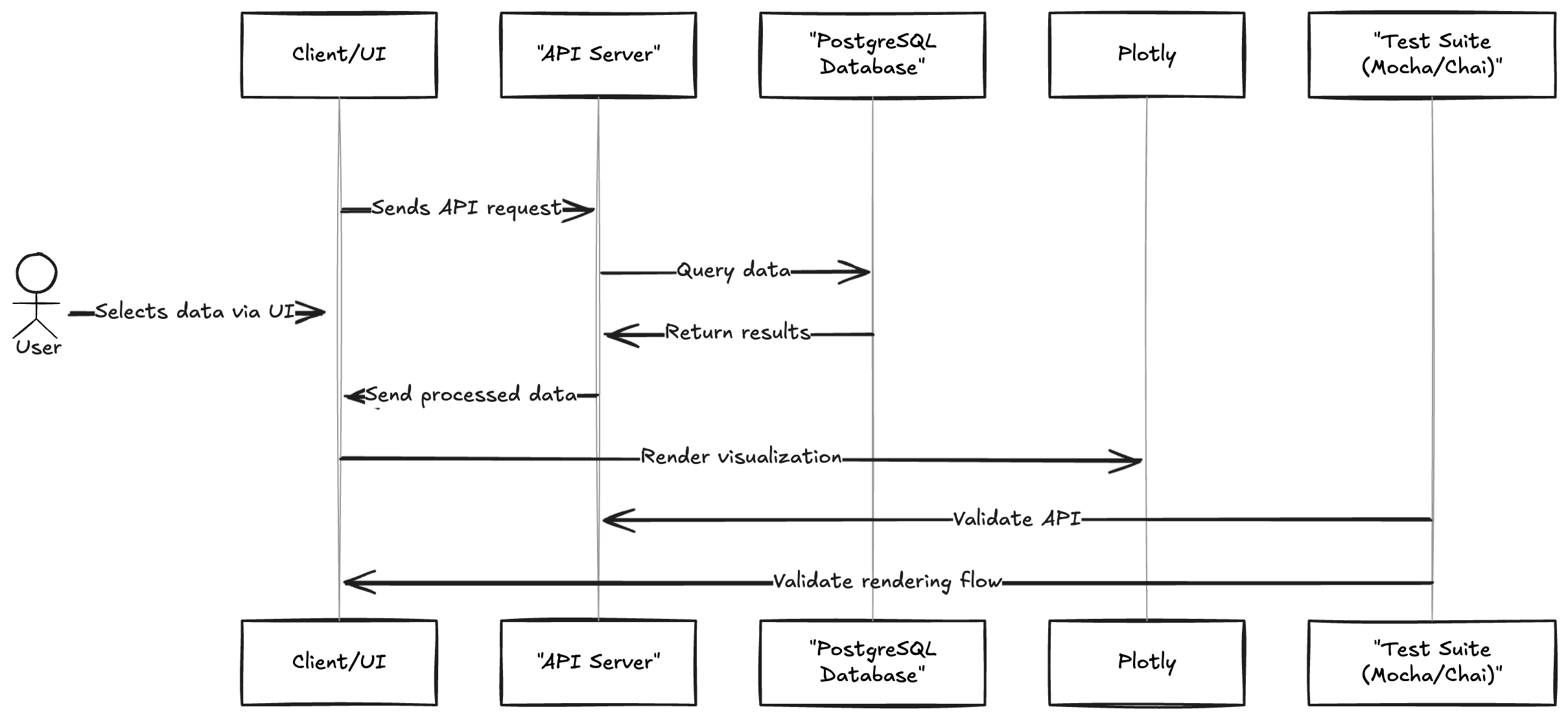

Workflow

  1. User selects data via UI
  2. API sends request to server
  3. Server queries PostgreSQL
  4. Server processes/converts data
  5. Server responds to client
  6. Client renders data via Plotly
  7. Mocha/Chai tests validate flow

Solution

We successfully implemented the BG9 test case within the readingsBarGroupQuantity.ts file. This test aimed to verify that the readings module correctly handled mixed reading intervals and unit conversions, specifically converting energy usage from kilowatt-hours (kWh) to megajoules (MJ).

Code Snippet:

mocha.it('BG9: 1 day bars for 15 + 20 minute reading intervals and quantity units with +-inf start/end time & kWh as MJ reverse conversion', async () => {

const unitData = unitDatakWh.concat([
                        {
                            // u3
                            name: 'MJ',
                            identifier: 'megaJoules',
                            unitRepresent: Unit.unitRepresentType.QUANTITY,
                            secInRate: 3600,
                            typeOfUnit: Unit.unitType.UNIT,
                            suffix: '',
                            displayable: Unit.displayableType.ALL,
                            preferredDisplay: true,
                            note: 'MJ'
                        }
                    ]);

                    const conversionData = conversionDatakWh.concat([

                        {
                            // c6
                            sourceName: 'MJ',
                            destinationName: 'kWh',
                            bidirectional: true,
                            slope: 1 / 3.6,
                            intercept: 0,
                            note: 'MJ → KWh'
                        }
                    ]);
                    const meterData = [
                        {
                            name: 'Electric_Utility MJ Reverse',
                            unit: 'Electric_Utility',
                            displayable: true,
                            gps: undefined,
                            defaultGraphicUnit: 'MJ',
                            note: 'special meter',
                            file: 'test/web/readingsData/readings_ri_15_days_75.csv',
                            deleteFile: false,
                            readingFrequency: '15 minutes',
                            id: METER_ID
                        }
                    ];

                    // Load data into the database
                    await prepareTest(unitData, conversionData, meterDatakWhGroups, groupDatakWh, meterData);

                    // Get unit ID for MJ
                    const unitId = await getUnitId('MJ');

                    // Load expected response data from the corresponding CSV file
                    const expected = await parseExpectedCsv('src/server/test/web/readingsData/expected_bar_group_ri_15-20_mu_kWh_gu_MJ_st_-inf_et_inf_bd_1.csv');

                    // Create a request to the API for unbounded reading times and save the response
                    const result = await chai.request(app).get(`/api/unitReadings/bar/groups/\${GROUP_ID}`)
                        .query({
                            timeInterval: ETERNITY.toString(),
                            barWidthDays: '1',
                            graphicUnitId: unitId
                        });

                    // Check that the API reading matches the expected data from the CSV
                    expectReadingToEqualExpected(result, expected, GROUP_ID);
                });
            }
        });
    });
});

Steps Taken:

  1. Read the docs and past tests
  2. Wrote the test with TypeScript
  3. Verified results using Docker

To verify the test, I ran it within the Docker environment, and all tests, including BG9, passed successfully. Below is a screenshot showing the test results:

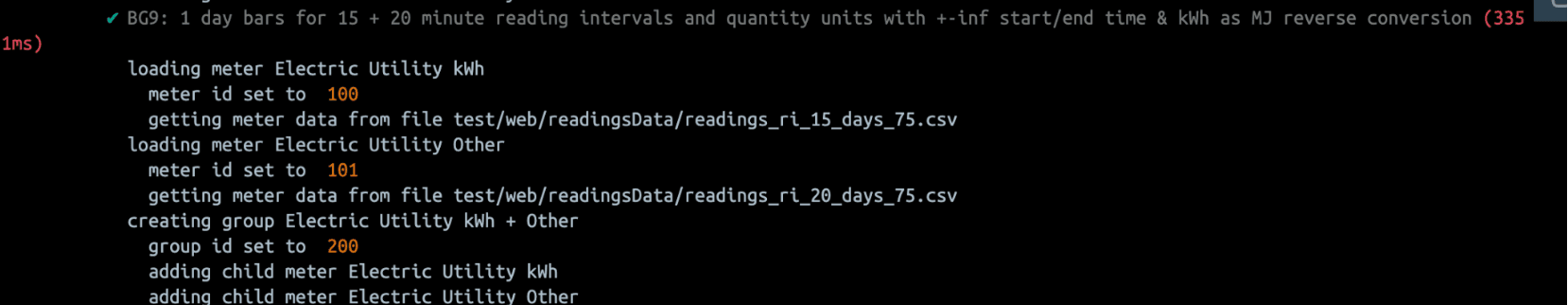

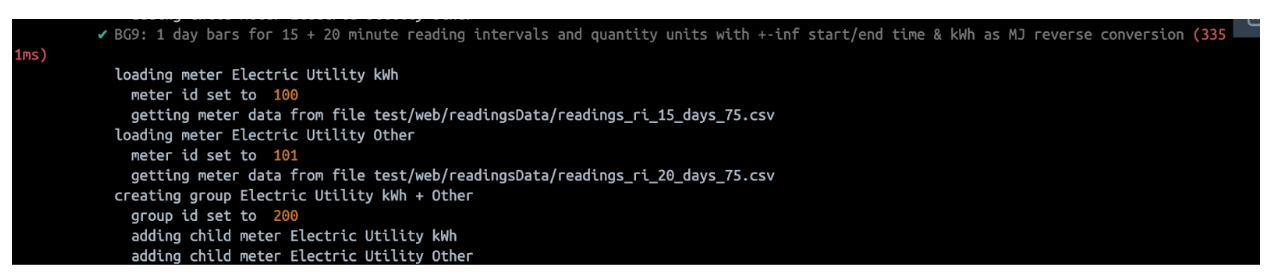

Test results passing in Docker
Test results passing in Docker

You can view the pull request here.

Conclusion

Contributing to OED was a fulfilling experience. I learned how to work in a large open-source project, follow community standards, and meaningfully collaborate. Most importantly, I contributed to a tool used by real people working toward sustainability. Huge thanks to my teammates, CTI, and CodeDay for making this possible.
